Designed & Made in IndiaBattery Cells
Supports up to 16S cell configurations for 51.2V energy storage systems.
BharatBMS-LV-16S-ESS
Designed & Made in IndiaEnergy Storage • UPS • Telecom
Built for Reliable 51.2V Energy Storage
Download Datasheet ↓
40–58.4V
Pack voltage range
Up to 16S
Cell configuration
100A / 150A peak
Current handling
CAN 2.0B + UDS
Communication
4 NTC sensors
Temperature sensors
240mA passive balancing
Balancing
01 / APPLICATIONS
Purpose-Built for
Energy Storage
BharatBMS-LV-16S-ESS is a BMS for UPS, telecom, and energy storage systems. It supports battery configurations of up to 16 cells in series with voltage monitoring, balancing, and protection.
Small ESS

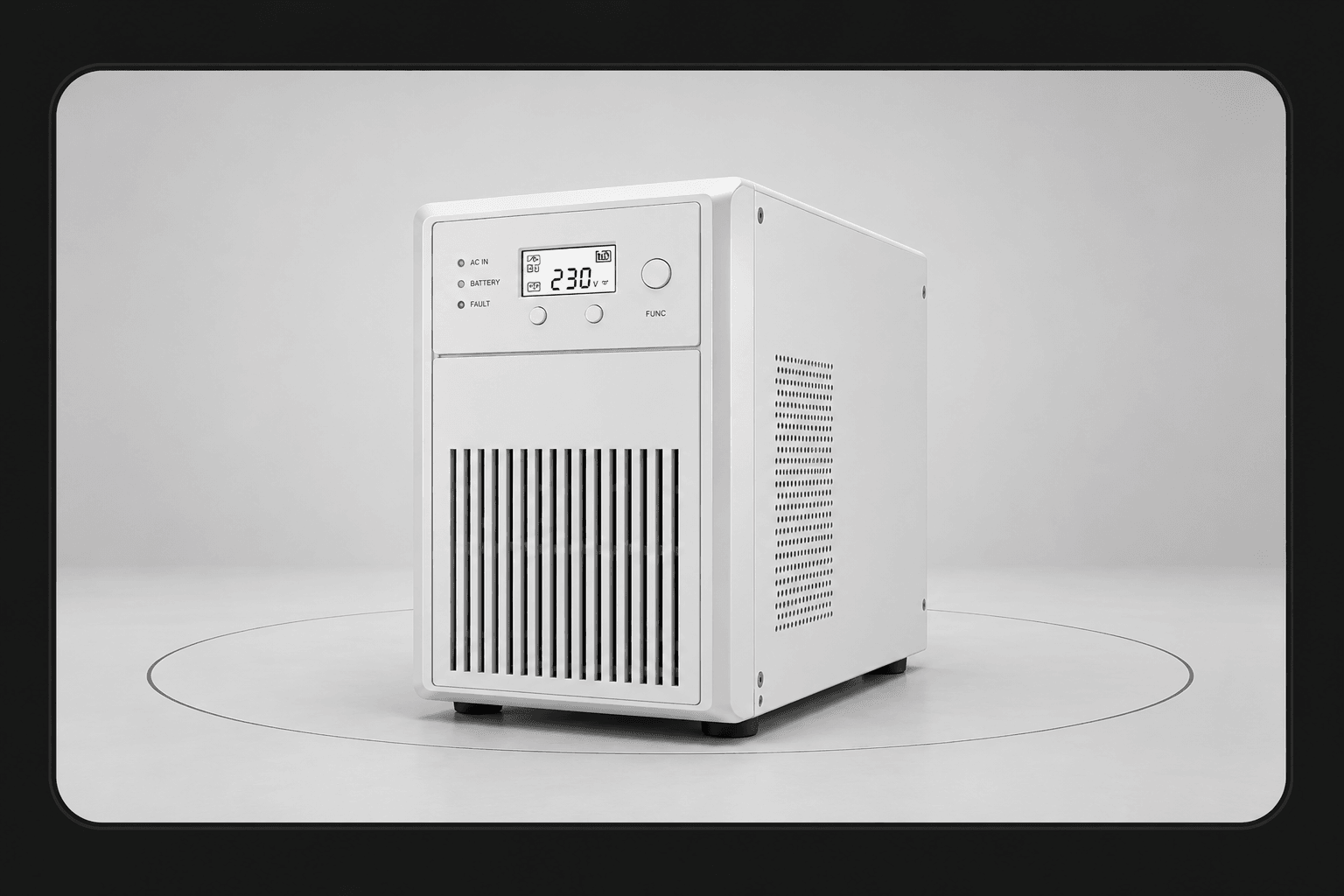

UPS & Backup Power

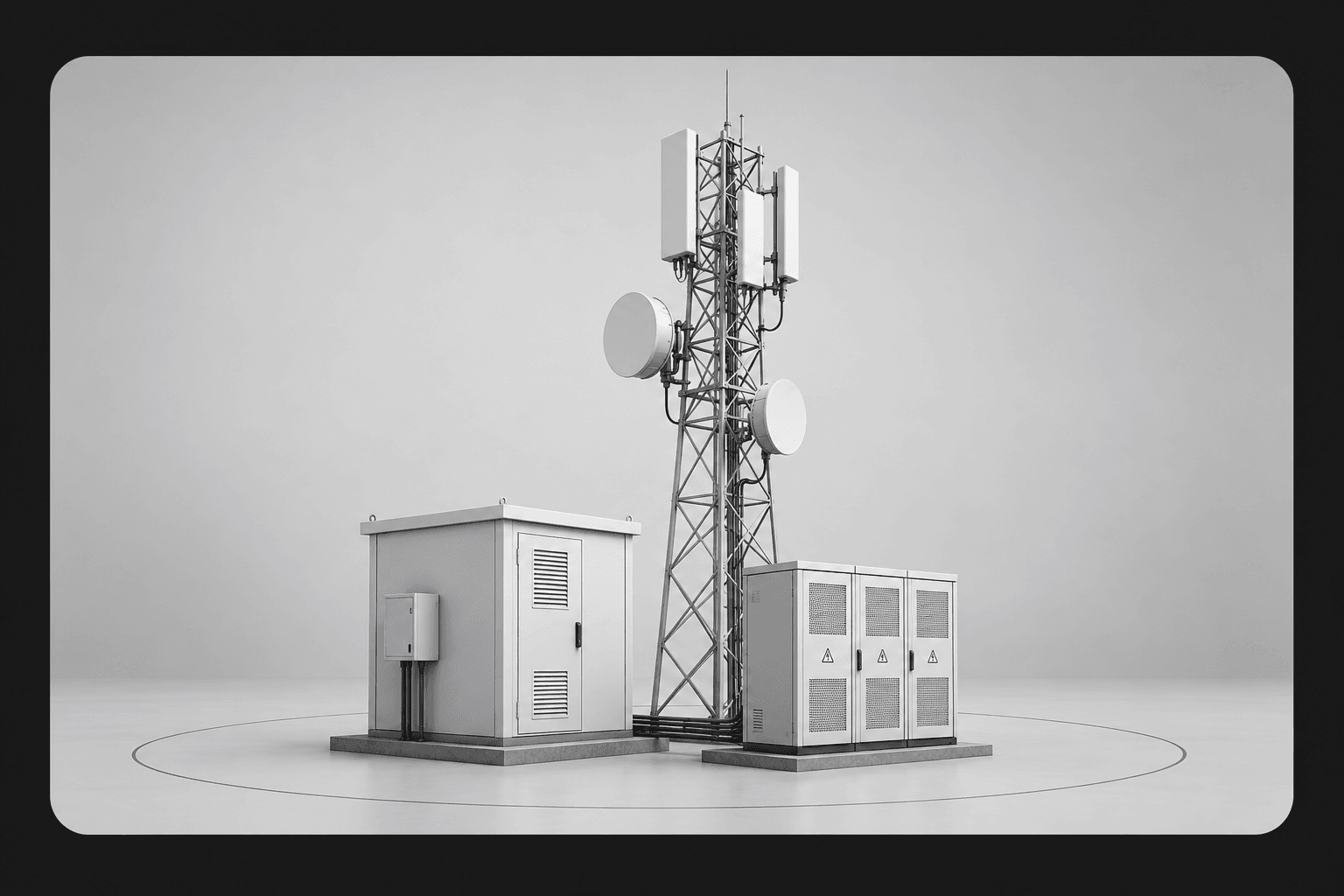

Telecom Infrastructure
02 / FEATURES
Features
BharatBMS-LV-16S-ESS is designed for 51.2V battery systems, providing precise cell monitoring, passive balancing, thermal monitoring, and configurable protection for energy storage, UPS, and telecom applications.

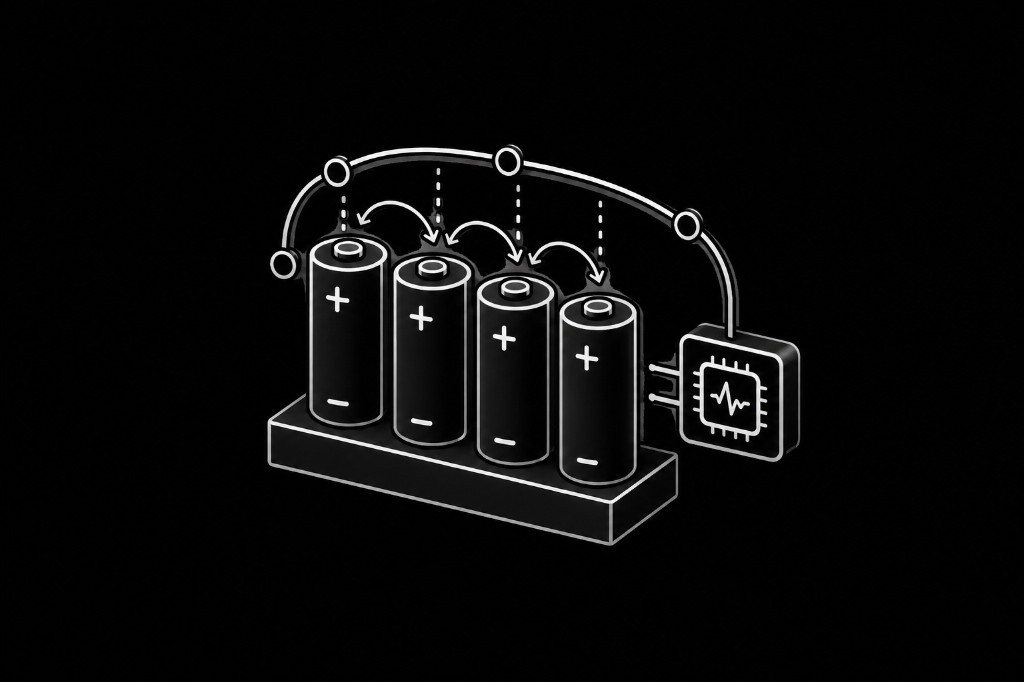

Cell Monitoring & Balancing
±3mV cell-voltage measurement accuracy with 240mA passive balancing helps maintain cell consistency across the pack.
Multilayer Protection
Configurable over-voltage, under-voltage, overcurrent, short-circuit, and thermal protection helps protect the battery pack.
Thermal Monitoring
Four external NTC sensors provide thermal visibility across the battery pack, with configurable temperature protection and thermal runaway detection.
CAN & UART Communication
CAN and UART interfaces support integration with host controllers, chargers, and monitoring systems.
Firmware Customization
Firmware can be upgraded through UART or CAN, with configurable parameters for system-specific requirements.
SoX Algorithms
Advanced State of Charge (SoC) and State of Health (SoH) algorithms provide accurate battery state estimation for reliable monitoring and operation.
03 / SOFTWARE
Software Ecosystem
Tools for configuration, monitoring, diagnostics, and firmware management.
PC Configuration Tool
PC-based GUI for parameter configuration, live monitoring, diagnostics, and system setup.
Mobile Diagnostics
A field-service application for quick health checks, diagnostics, and troubleshooting.
Firmware Management
Secure over-the-air (OTA) firmware updates for fleet deployment.
Telemetry Integration
Standardized data payloads for integration with cloud monitoring platforms.
04 / OEM INTEGRATION
Built to Integrate. Designed to Perform.
BharatBMS-LV-16S-ESS connects seamlessly with energy storage systems, inverters, chargers, and monitoring platforms through robust CAN/UART communication.

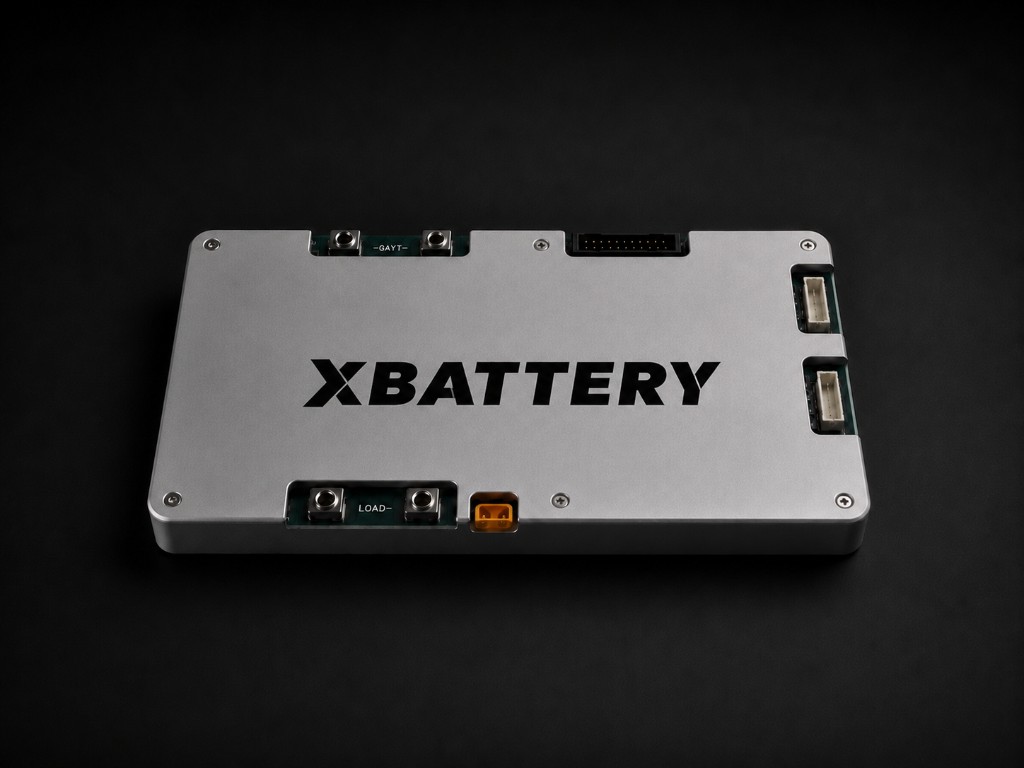

BharatBMS-LV-16S-ESS
Inverter Integration
CAN and UART communication enables integration with inverters for battery monitoring, protection, and system control.
Charger
CAN and UART interfaces support integration with external chargers and configurable charging protection.
Monitoring & Diagnostics
Live battery monitoring, fault logging, parameter configuration, and built-in diagnostics support system maintenance.
Communication
Supports CAN UDS, Modbus, and UART communication for system integration and diagnostics.
Temperature Monitoring
Supports 4 NTC temperature sensors (10kΩ typical) for thermal monitoring across the battery pack.
05 / ORIGIN
Designed &
Made in India
BharatBMS is Xbattery's battery management system platform, designed and made in India for electric mobility and energy storage applications. It combines intelligent battery monitoring, cell balancing, protection, thermal management, and communication capabilities to support diverse battery systems.
06 / PLATFORM
Explore the Platform
48V
BharatBMS-LV-16S-Telecom
Up to 16 Parallel Packs
Explore Platform

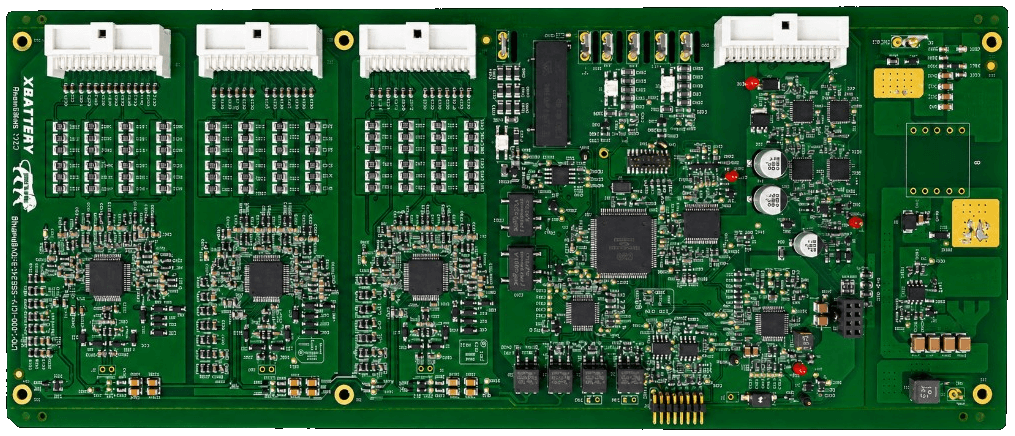

110V
BharatBMS-HV-42S-ESS
For Commercial & Industrial Energy Storage
Explore Platform

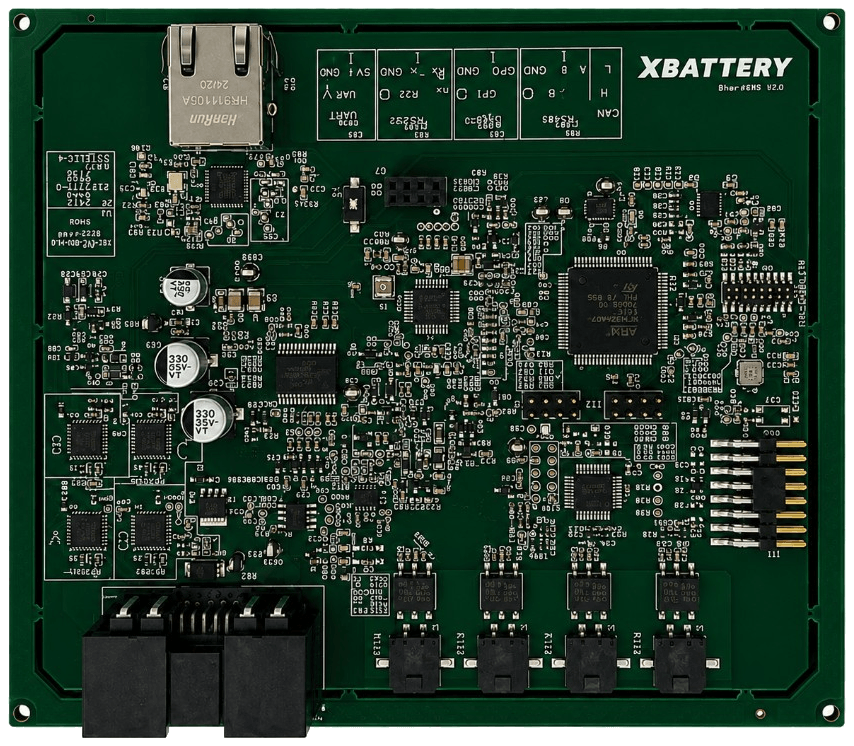

800V
Modular-800V-ESS
For Commercial & Industrial Energy Storage
Explore Platform

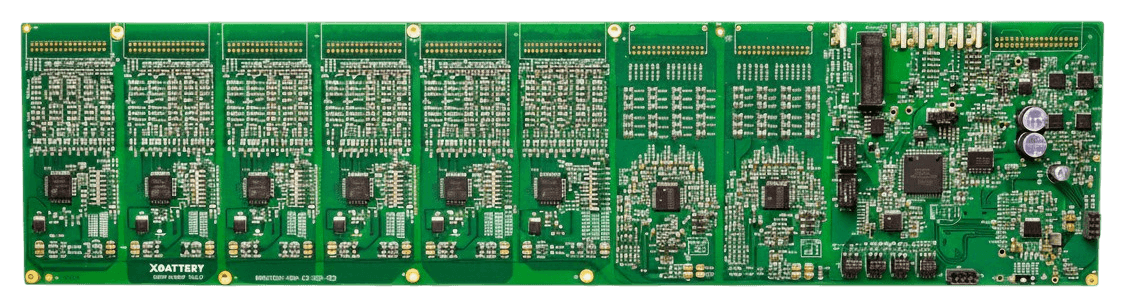

1500V
Modular-1500V-ESS
For Megawatt, Grid-Scale Energy Storage
Explore Platform07 / SPECIFICATIONS
Technical Specifications
| Cell Chemistry | LFP |
|---|---|
| Cell Count | Up to 16S |
| Nominal Pack Voltage | 51.2V |
| Battery Capacity Range | 5kWh |
| Pack Voltage Range | 40.0V – 58.4V |
| Input / Logic Power | 12V – 60V battery pack input |
| Internal Circuit Resistance | < 5mΩ (BMU + cabling) |
